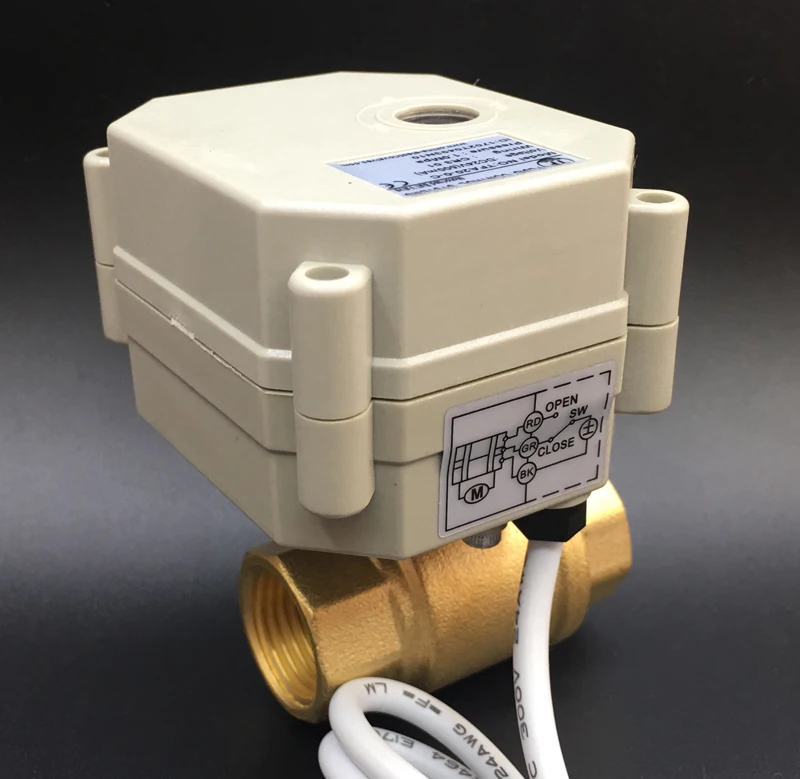

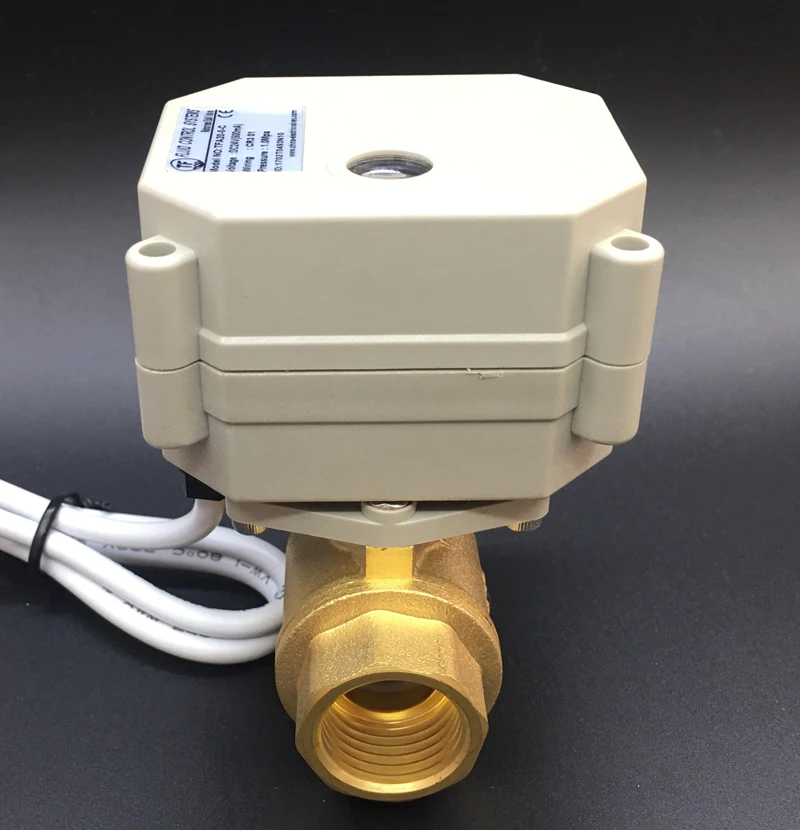

TF15-B2-C AC110-230V BSP 1/2” 2-Way Brass DN15 Electric Normally Open/Closed Valve Can Instead Of Solenoid Valve CE IP67

TF15-B2-C AC110-230V BSP 1/2” 2-Way Brass DN15 Electric Normally Open/Closed Valve Can Instead Of Solenoid Valve CE IP67

List Price: US $41.81
Price: US $41.81
Specification:
DN15 BSP
DN15 NPT
Voltage:
AC110V to 230V
Wiring Control:
CR502 Normally Open
CR202 Normally Close
CR502 Normally Close
CR202 Normally Open
List Price: US $41.81
Price: US $41.81
item specifics
Port Size:
DN15 1/2''
Actuator Mode:
With Instruction
Power Source:
AC
Model Number:
TF15-B2-C
Brand Name:
Tsai Fan
Media:
Water
Material:
Brass
Structure:
Ball
Standard or Nonstandard:
Standard
Pressure:
Max 1.0 Mpa
Power:
AC110V-230V
Temperature of Media:
1-95 degree C
Products:
2-Way Motorized Ball Valve
Voltage:
AC110V-230V
On/Off Time:
5 Sec
Control Wires:
2 Wires or 5 Wires
Position Indicator:
Yes
Signal Feedback:
Yes
Gear M:
Metal Gear
Protection Class:
IP67
Using Life:
100,000 Circles
Warranty:
2 Years
Product description

____________________________________________________________________________________________________________________

We're Different!

1). Metal Gears Design. Most of the same products on the market are plastic gears.
2). Protection Class IP67. Most of the same products on the market are IP65.
3). Valve thread BSP or NPT for option.
4). Valve Bore Is Full Port. Most of the same products are limit (reduce) port.

5). Using Life 100,000 Circles. (Using Life 13 years if the valve on/off 20 circles every day)
6). Factory direct sales. Usually goods in stock, 3-4 days production time during the order busy season.
7). Warranty 2 years. Buy with confidence!
____________________________________________________________________________________________________________________

Product size: BSP/NPT 1/2″, DN15
Valve Body Material: Brass
Working Voltage: AC110V-230V
Open/close Time: 5 Sec
Wiring Control Methods: CR2 02 CR5 02 (Optional)
Maximum Working Pressure: 1.0MPa
Circulation Medium: Fluid, Air
Working Current: ≤80MA (500 mA shown on the lable means the minimum
current of external power)
Life time: 100,000 times
Actuator Material: Engineering Plastics
Sealing Material: EPDM & PTFE
Actuator Rotation: 90°
Max. Torque Force: 2 N.M
Cable Length: 0.5m
Environment Temperature:-15°~50°
Liquid Temperature: 1°~95°
Manual Override: None
Indicator: Yes
Protection Class: IP67
